This electric sliding gate opener is designed to be compact yet powerful, handling gates weighing up to 800kg. It operates at a moving speed of about 20cm/s and features an emergency release key for unexpected situations. With dimensions around 29 x 29 x 15cm, it’s efficient without taking up much space.
- Handles gate weight up to 800kg with 4m rail length
- Gentle start and stop features for extended gate lifespan
- Automatic obstruction detection with reversal function
- Emergency release key for power failure situations
- Programmable auto-close feature (0-99 seconds adjustable)
- Comes with 3 programmable remote controls
- Wireless keypad included for keyless entry
- Weather and dust resistant control box (IP44 rated)
- Suitable for steel, wood, vinyl, panel, tube and chain-link gates
- Motor: 230VAC, 350W
- Gate moving speed: approx. 20cm/s
- Max. torque: approx. 16Nm
- Operating temperature range: approx. -22°C to +50°C
- Dimensions: approx. 29 x 29 x 15cm
- Assembly required: Yes

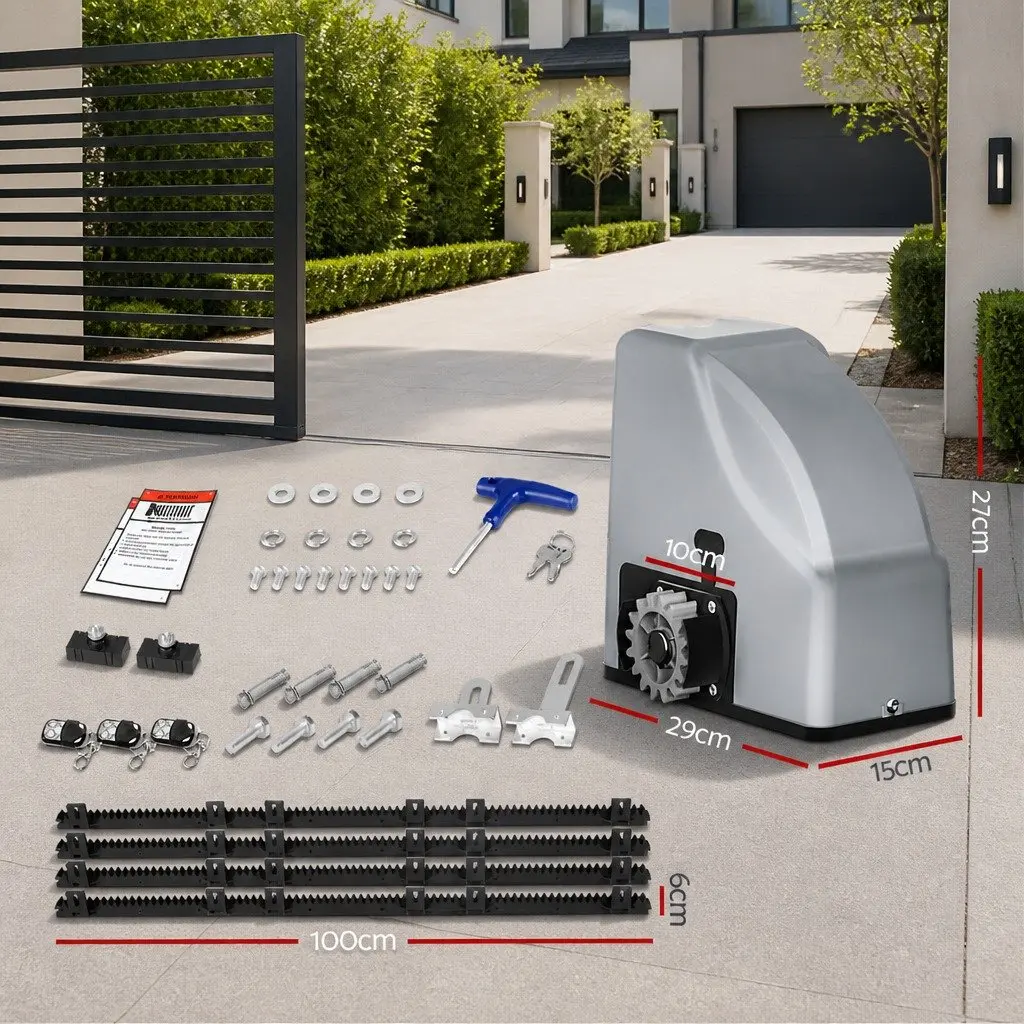

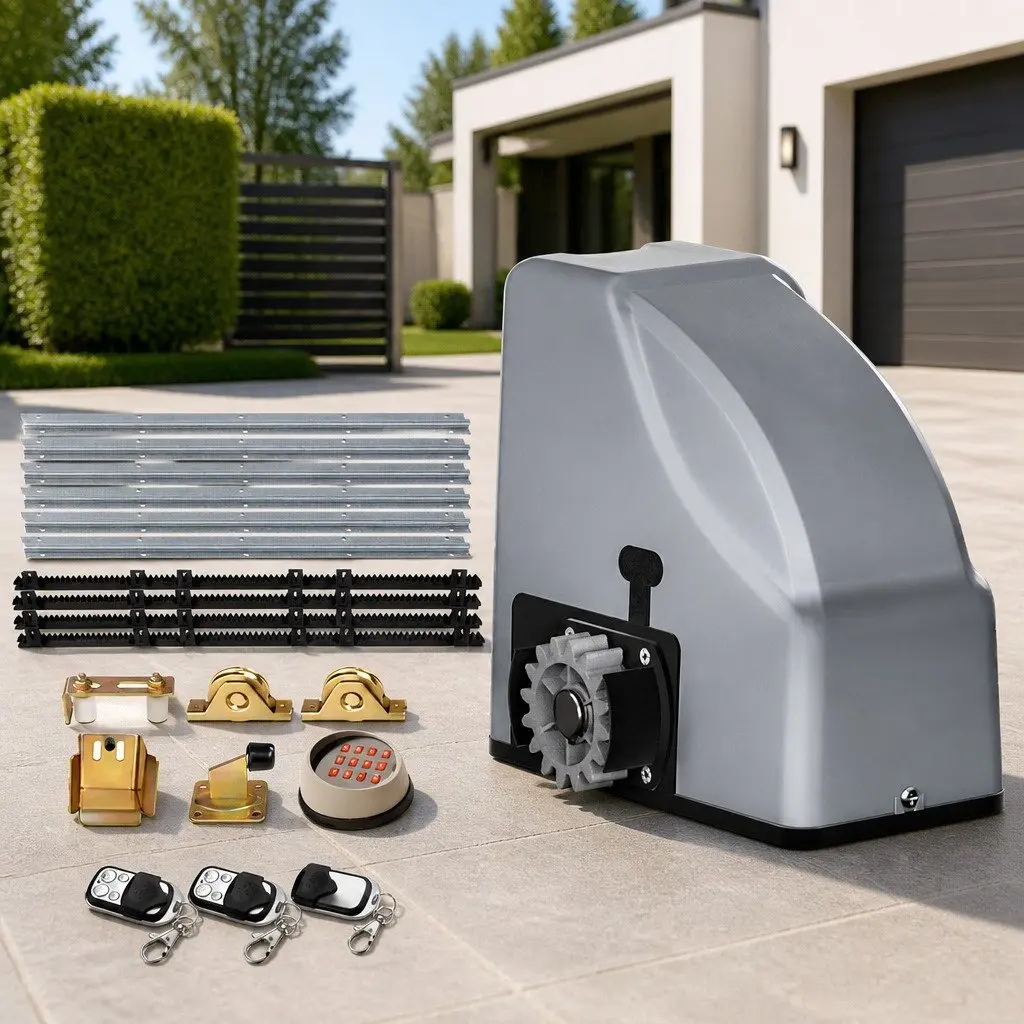

- Gate Opener X1
- Remote Control X3
- 1M Rail X4
- 1M U Groove Galvanised Ground Track X6
- 90mm U Groove Bearing Wheels X2
- Upper Guide Bracket with 2 Nylon Rollers X1
- Gate End Stop/Catcher (93mm Opening) X1
- Wireless Keypad X1
- Gate Stopper X1
- Installation Accessories X1
- User Manual X1
