Compact Electric Hoist Winch 400/800KG – High Efficiency

With a lifting speed of 10 metres/min for single rope and 5 metres/min for double rope, this electric hoist winch is efficient and powerful. It weighs approximately 18.5kg and supports robust lifting capacities.

• Lateral-Magnetic Single-Phase Capacitance Motor
• Emergency Instant Stop Switch

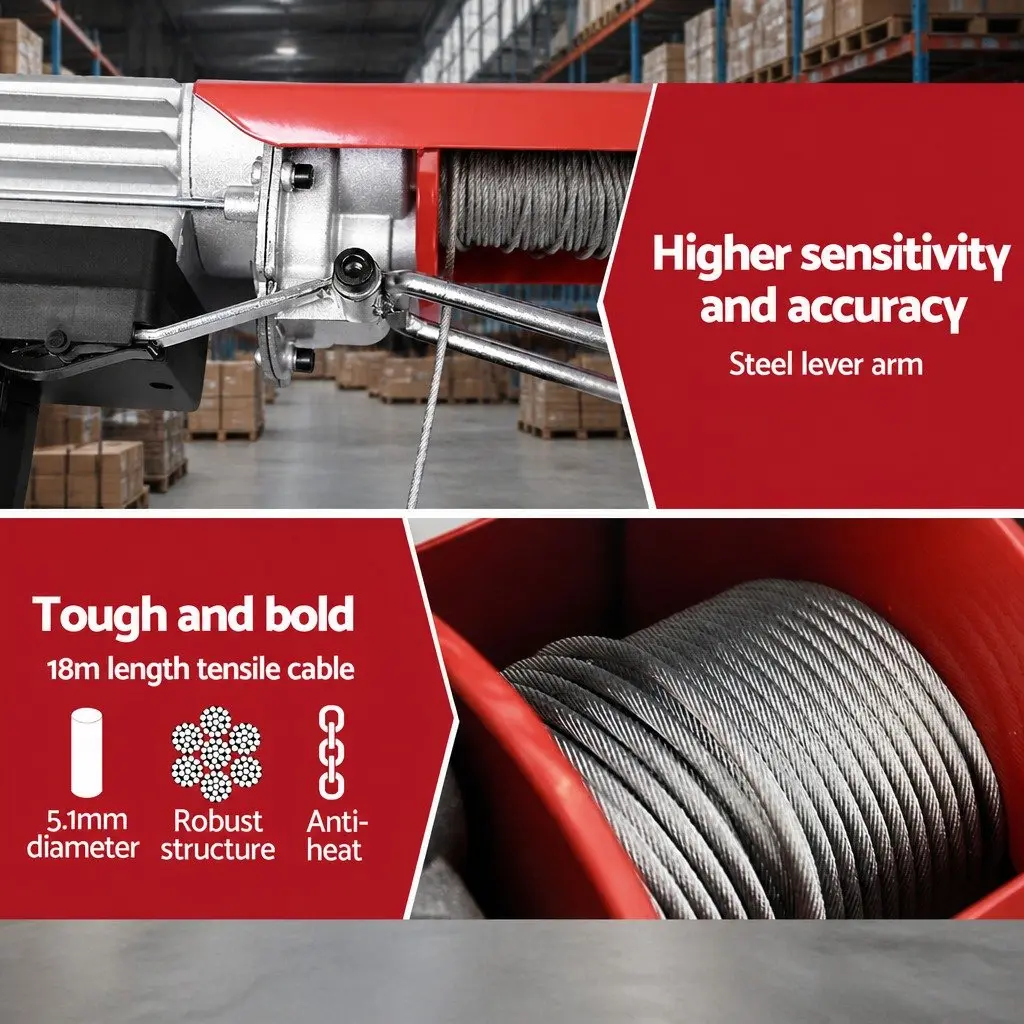

• 7×19 Robust Wire Rope Structure
• Single and Double Rope Lifting Modes
• Overload Protection Function
• Remote Control Operation

• Voltage: AC 240V/50Hz
• Input Power: 1300W
• Single Rope Capacity: 400kg
• Double Rope Capacity: 800kg
• Rope Type: 7×19 Structure Wire Rope
• Rope Diameter: 5.1mm
• Lifting Speed (Single Rope): 10 metres/min
• Lifting Speed (Double Rope): 5 metres/min
• Lifting Height (Single Rope): 18m
• Lifting Height (Double Rope): 7.5m
• Weight: approx. 18.5kg
• Power Cable Length: 0.8m
• Control Switch Cable Length: 1.8m
• Colour: Red

• 1 x Electric Hoist
• 1 x User Manual
