Simplecom CA152 USB to 3.5mm Audio and Microphone Sound Card Adapter for TRS or TRRS Headset with Mic

Simplecom CA152 USB to 3.5mm Audio and Microphone Sound Card Adapter for TRS or TRRS Headset with Mic

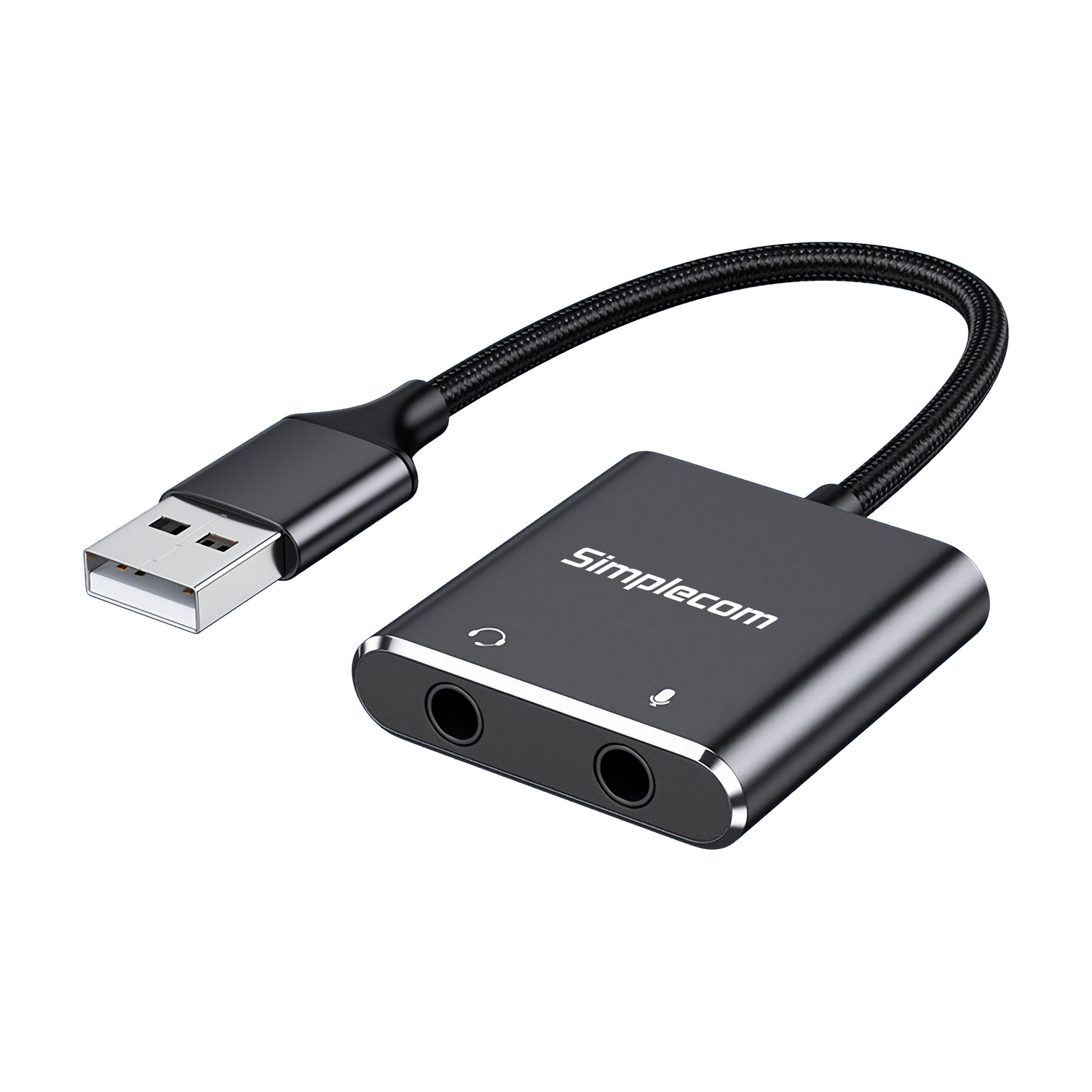

CA152 is a USB to 3.5mm audio and microphone adapter that turns your 3.5mm headphones into USB interface. The headphone jack is compatible with both TRS (three-conductor) plug headset and TRRS (four-conductor) plug headset with mic. Microphone jack is compatible TRS (three-conductor) plug microphone.

Not only for PC headphones with separate audio and microphone plugs, it’s also compatible with single TRRS plug mobile headset with both listening and talking support.

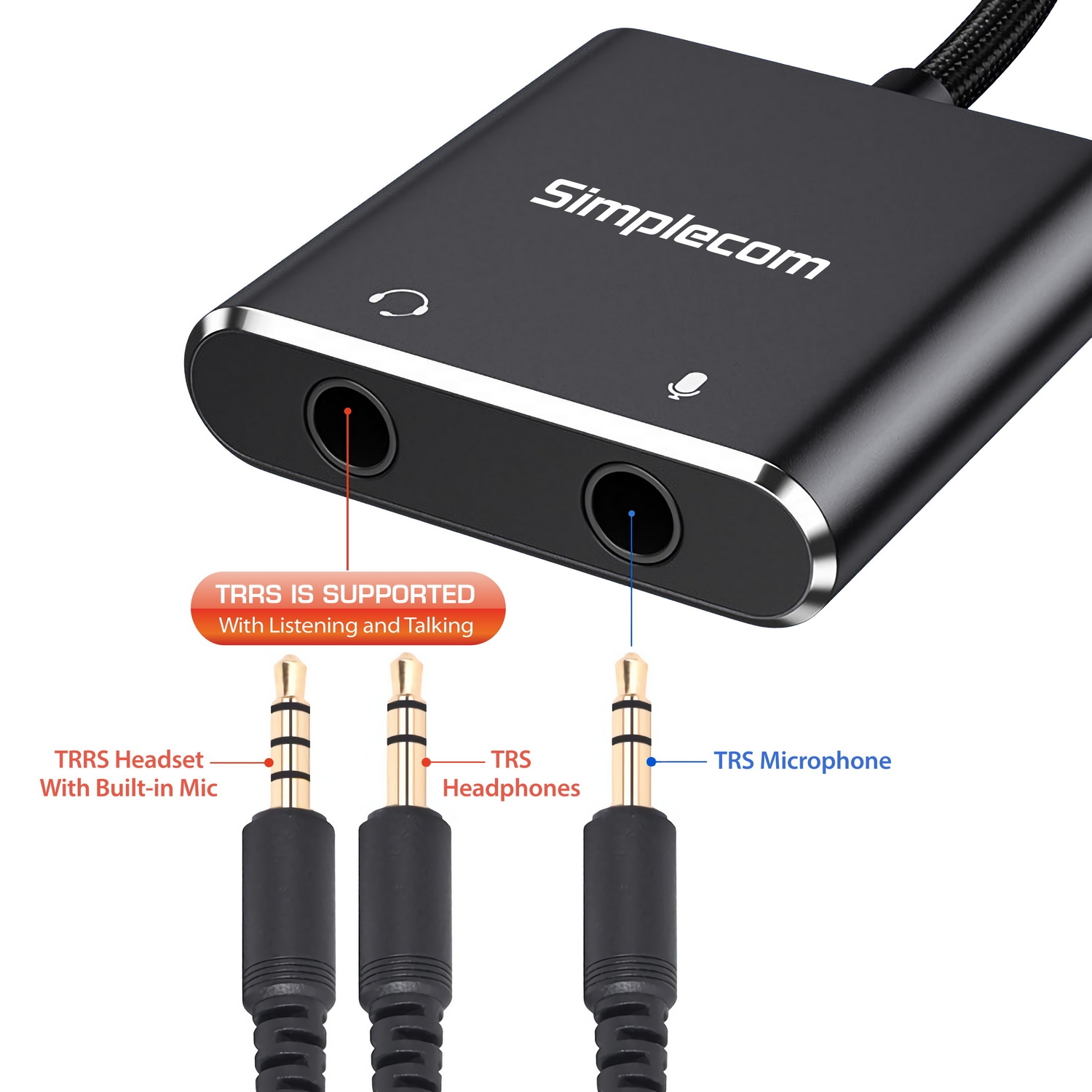

With built-in smart conversion chip, the headphones jack is able to automatically detect TRS or TRRS headset, the integrated mic will be enabled when a TRRS headset is plugged in, so you can also listen and talk when using a single cable headset with mic.

Wide support of operating systems, compatible with Windows PC, MacOS, Linux, Chrome OS and more.

Features

• USB to 3.5mm audio and microphone dual-port adapter
• Headphone jack supports both listening and talking for TRRS (four-conductor) headset with mic
• Microphone jack supports TRS (three-conductor) plug microphone
• Plug and play, no driver software required
• Premium aluminum casing for durable surface and stylish finishing
• Durable and long-lasting braided cable
• Compact and portable design, easy to carry
• Widely supported operating systems for PC, Mac, Linux and more

Specifications

• Model: CA152
• USB Interface: USB 2.0
• Headphones Jack: 3.5mm TRRS Female (four-conductor) with mic support
• Microphone Jack: 3.5mm TRS Female (three-conductor)
• Audio output: 24bit / 96Khz max (Stereo)
• Material: Braided Cable + Aluminum Shell
• Cable Length: 15cm (without connectors)
• Dimension: 3.4cm x 3.3cm x 0.8cm
• Weight: 18g
• Operating system Support: Windows XP and above, MacOS 8.6 and above, Linux, Chrome OS, PS4, PS5, Switch

Important Notes:

• The microphone port on the adapter will be disabled when a TRRS headset with integrated microphone is plugged in, and the microphone on the TRRS headset is activated.
• Does not work with PS3, TV, Amplifier, Car, Xbox One. (The USB port on those devices do not carry audio signal)
• Support CTIA standard TRRS headset only, legacy OMTP standard headset is not supported
• No in-line control when using mobile headset, doesn’t support Pause, Play, Volume Up and Volume Down controls
